Specifications:

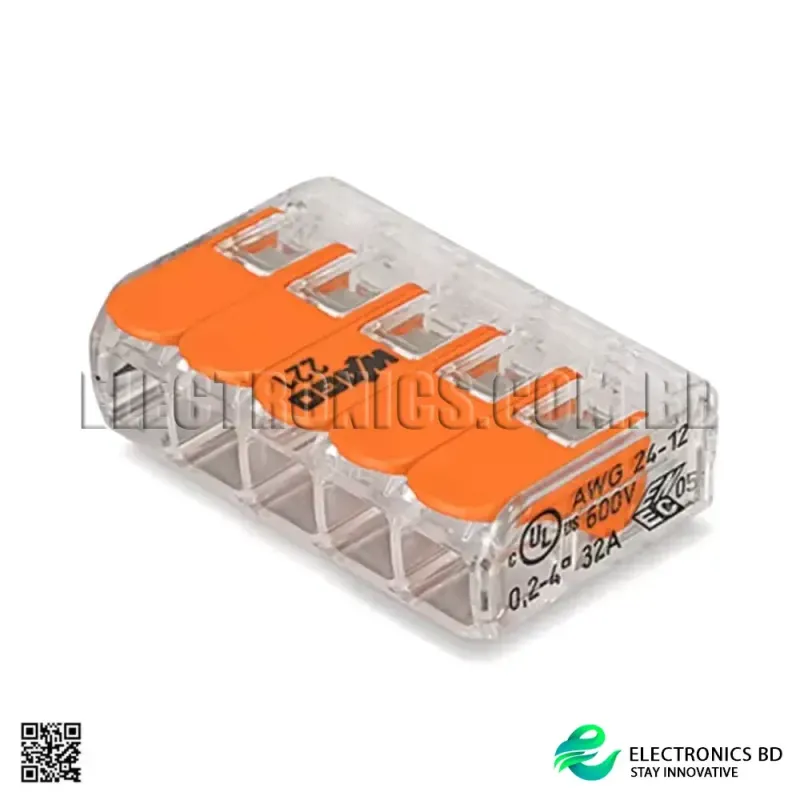

• Model: 221-615

• Color: Transparent

• Number of Connection Points: 5

• Connection Technology: CAGE CLAMP

• Actuation Type: Push-in Lever

• Conductor Material: Copper

• Rated Voltage: 450V

• Rated Surge Voltage: 4kV

• Nominal Current: 41A

• Nominal Cross Section: 6 mm²

• Supported Wire Sizes:

  • Solid: 0.5 – 6 mm² / 20 – 10 AWG

  • Stranded: 0.5 – 6 mm² / 20 – 10 AWG

  • Fine-Stranded: 0.14 – 4 mm² / 24 – 12 AWG

• Strip Length: 13 mm / 0.51 in

• Wiring Type: Side-entry

• Flammability Rating: UL 94 V2

• Weight: Approx. 4.5g

• Dimensions (Approx.):

  • Width: ~25 mm

  • Height: ~9 mm

  • Length: ~39 mm

Package:

• 1 x 221-615 5-Port Cable Connector

Description:

The 221-615 is a compact 5-port universal cable connector designed for easy, secure, and tool-free wiring. With transparent housing and CAGE CLAMP® push-lever technology, it allows fast connections of copper wires up to 6 mm². Suitable for high-power distribution, lighting installations, control boxes, and DIY projects, this connector ensures reliability, reusability, and safety at 41A and 450V.

FAQ:

Q1: How many wires can this connector hold?
A1: This model supports up to 5 individual copper wires.

Q2: What wire types are compatible?
A2: Solid, stranded, and fine-stranded copper wires.

Q3: Is this suitable for high current loads?
A3: Yes, it supports up to 41A and 450V.

Q4: Can I reuse the connector after disconnection?
A4: Yes, the push-lever design allows easy reuse.

Q5: Where can I use this connector?

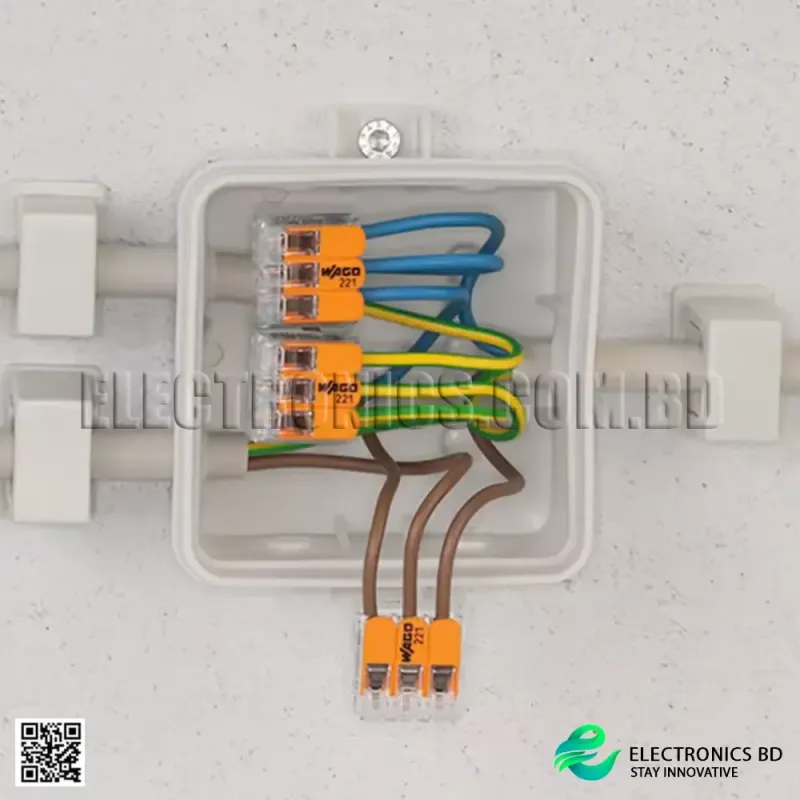

A5: Ideal for electrical panels, lighting systems, home rewiring, and industrial control setups.
