Specifications:

• Model: 221-613

• Color: Transparent

• Number of Connection Points: 3

• Connection Technology: CAGE CLAMP

• Actuation Type: Push-in Lever

• Conductor Material: Copper

• Rated Voltage: 450V

• Rated Surge Voltage: 4kV

• Nominal Current: 41A

• Nominal Cross Section: 6 mm²

• Supported Wire Sizes:

  • Solid: 0.5 – 6 mm² / 20 – 10 AWG

  • Stranded: 0.5 – 6 mm² / 20 – 10 AWG

  • Fine-Stranded: 0.14 – 4 mm² / 24 – 12 AWG

• Strip Length: 13 mm / 0.51 in

• Wiring Type: Side-entry

• Flammability Rating: UL 94 V2

• Weight: Approx. 3g

• Dimensions (Approx.):

  • Width: ~20 mm

  • Height: ~9 mm

  • Length: ~32 mm

Package:

• 1 x 221-613 3-Port Cable Connector

Description:

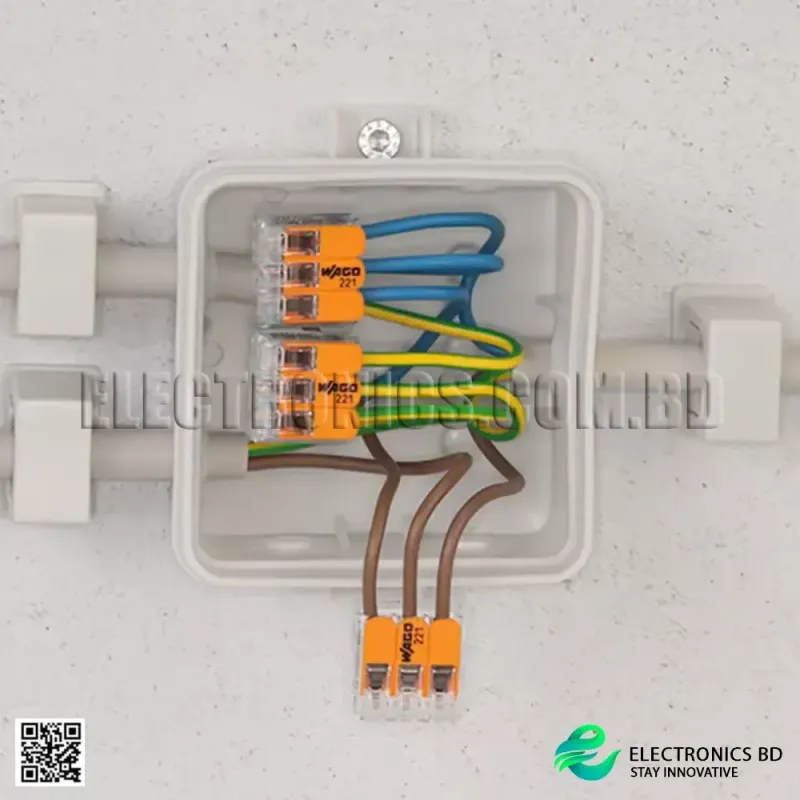

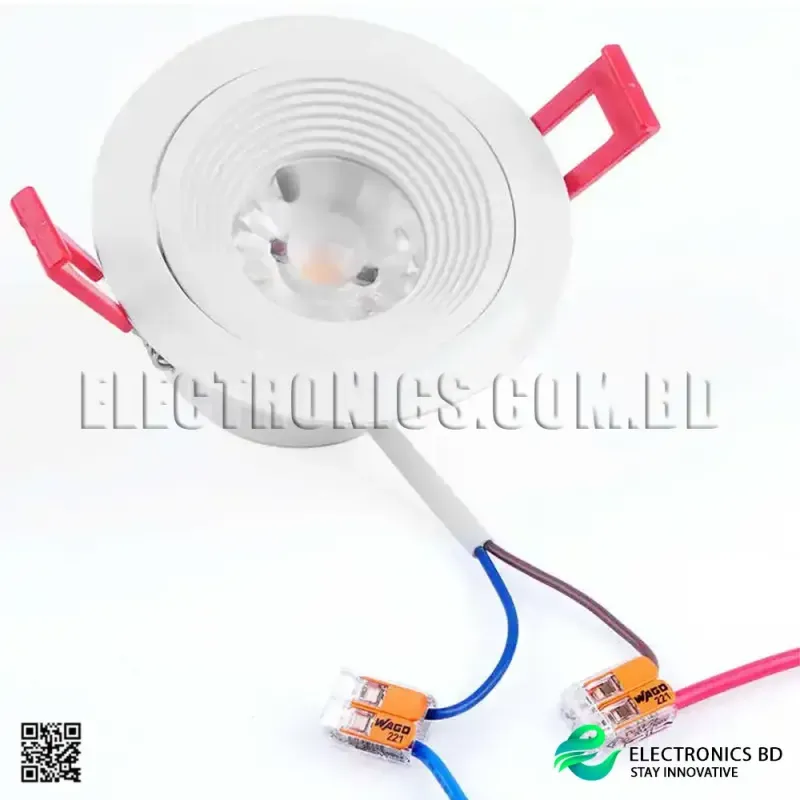

The 221-613 is a compact and powerful 3-port cable connector ideal for high-current applications. It supports up to 6mm² solid or stranded copper wires and is built for ease of use with its CAGE CLAMP® lever system. The transparent housing allows visual inspection, making it reliable and safe for use in lighting circuits, heavy-duty wiring, and control panels. Fully reusable and tool-free, it’s an electrician’s best choice for modern installations.

FAQ:

Q1: What wire sizes are supported?
A1: Solid/stranded: 0.5–6 mm², fine-stranded: 0.14–4 mm² copper wires.

Q2: How many wires can I connect?
A2: This model allows up to 3 separate wire connections.

Q3: What is the current and voltage rating?
A3: 41A and 450V.

Q4: Is it reusable after disconnection?
A4: Yes, the push-lever system is reusable and easy to operate.

Q5: Can it be used in home and industrial setups?
A5: Absolutely. It’s ideal for both home wiring and industrial control systems.
