Specifications:

• Model: 221-612

• Color: Transparent

• Number of Connection Points: 2

• Connection Technology: CAGE CLAMP

• Actuation Type: Push-in Lever

• Conductor Material: Copper

• Rated Voltage: 450V

• Rated Surge Voltage: 4kV

• Nominal Current: 41A

• Nominal Cross Section: 6 mm²

• Wire Compatibility:

  • Solid: 0.5 – 6 mm² / 20 – 10 AWG

  • Stranded: 0.5 – 6 mm² / 20 – 10 AWG

  • Fine-Stranded: 0.14 – 4 mm² / 24 – 12 AWG

• Strip Length: 13mm / 0.51 in

• Type of Wiring: Side-entry

• Flammability Rating: UL 94 V2

• Weight: Approx. 2.1g

• Dimensions (Approx.):

  • Width: ~15 mm

  • Height: ~9 mm

  • Length: ~22 mm

Package:

• 1 x 221-612 2-Port Cable Connector

Description:

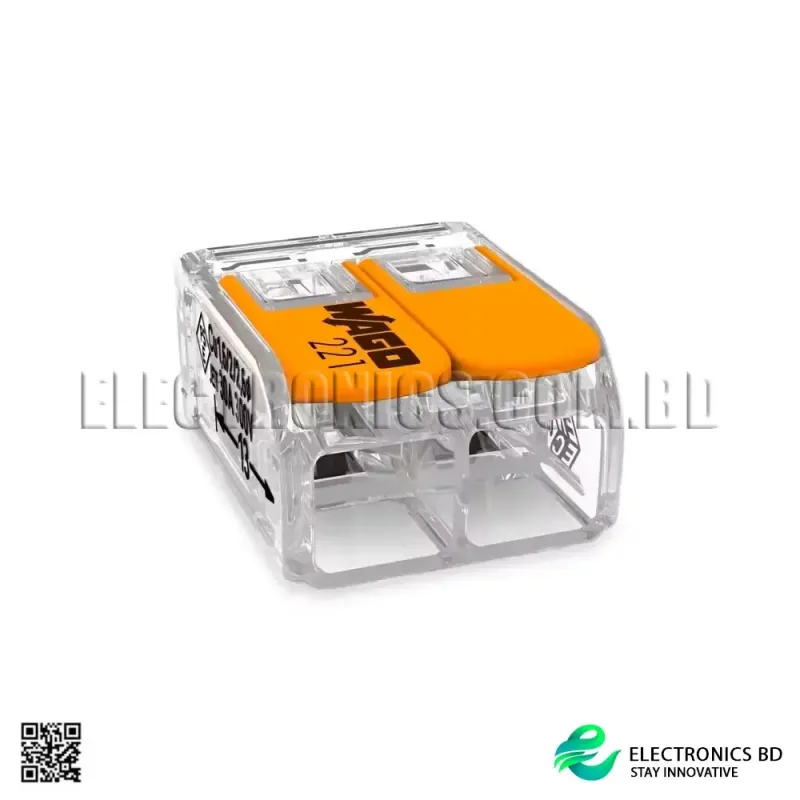

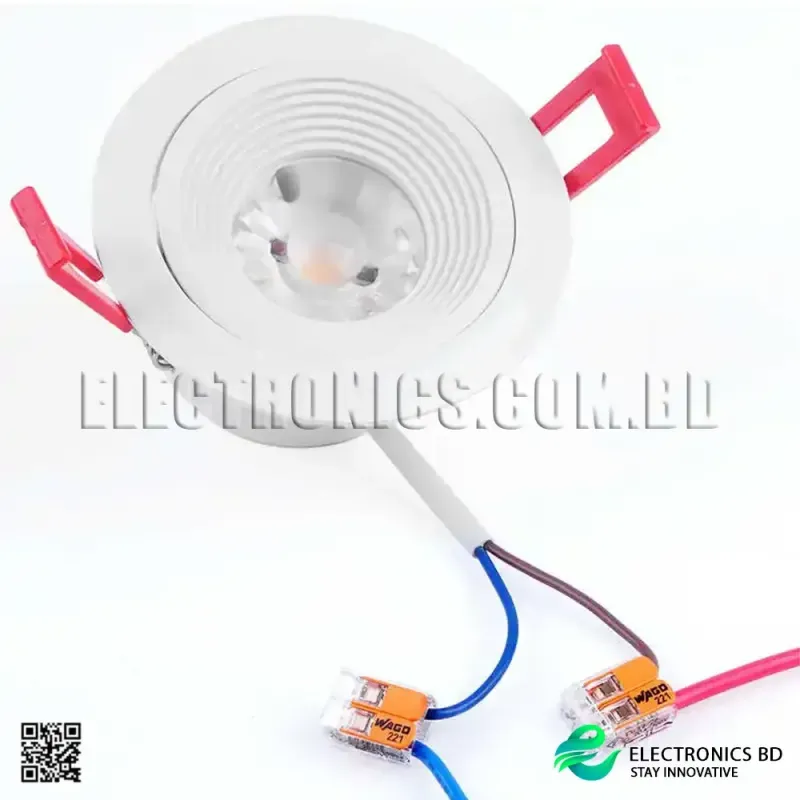

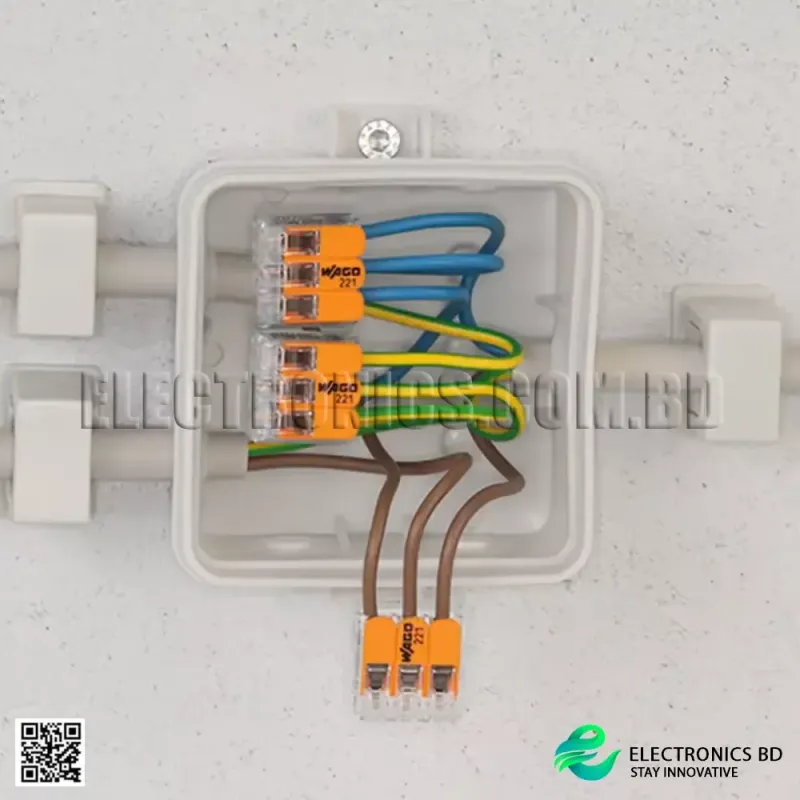

The 221-612 Universal Connector is a high-capacity 2-port terminal for tool-free wire splicing. Supporting up to 6 mm² solid or stranded copper wires, it's ideal for LED systems, AC wiring, solar setups, and industrial control panels. The transparent housing allows easy visual checks, while the push-lever mechanism ensures secure and reusable connections. Engineered with CAGE CLAMP® technology, it’s built for safety and high-current stability.

FAQ:

Q1: What wire sizes are supported?
A1: Solid and stranded wires from 0.5 to 6 mm², and fine-stranded from 0.14 to 4 mm².

Q2: How many wires can I connect?
A2: This model supports 2 wires (2 ports).

Q3: What is the current and voltage rating?
A3: It supports up to 41A and 450V.

Q4: Is it safe for high-load applications?
A4: Yes, it’s rated for high power and built with flame-resistant materials.

Q5: Can it be reused?
A5: Yes, the push-lever design allows multiple use without tools.
