Specifications:

• Current Rating: 10A

• Voltage Drop: 75mV

• Environmental Condition: -40°C to +60°C

• Relative Humidity: ≤95% (at 35°C)

• Shock Frequency Endurance: 80-120 times/min

• Overreacting Capacity: 120% of rated current

• Dimensions (LWH): 12 x 2.5 x 1.8 cm (4.72" x 0.98" x 0.70")

Package:

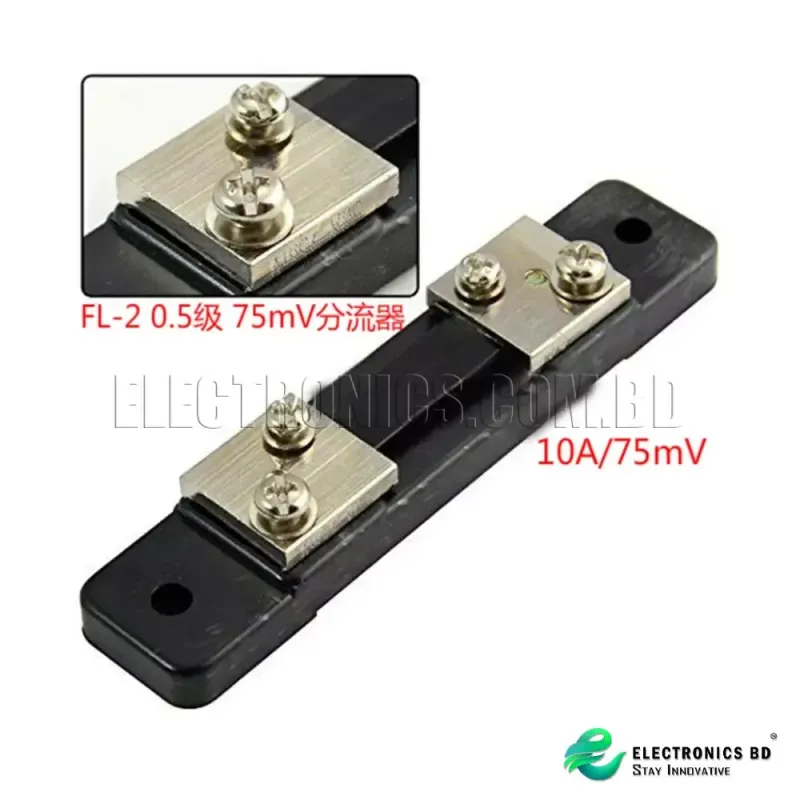

• 1 x FL-2 External Shunt Resistor

Description:

The FL-2 10A 75mV External Shunt Resistor is designed for analog current and voltage meters, offering high accuracy and reliability. With a low voltage drop of 75mV, it ensures efficient performance in electrical measurement applications. It can withstand harsh environmental conditions from -40°C to +60°C and is capable of handling up to 120% of its rated current. Ideal for DC shunt applications, it provides a stable and precise reading in power monitoring systems, industrial setups, and electrical testing environments.

FAQ:

1. What is the function of this shunt resistor?

• It is used to measure current by creating a small, measurable voltage drop proportional to the current flow.

2. Can this be used for both AC and DC applications?

• This shunt resistor is primarily designed for DC current measurement.

3. What is the maximum current it can handle?

• It supports 10A continuous current and can withstand up to 120% (12A) for a short duration.

4. What kind of voltmeter can be used with this shunt?

• It is compatible with analog DC voltmeters designed for 75mV input.

5. How do I install this shunt in a circuit?

• The shunt resistor is connected in series with the load, and the voltage measurement points are taken across its terminals.
