Specifications:

• Model: WB5003

• Style: Electric

• Material: Aluminum, Plastic

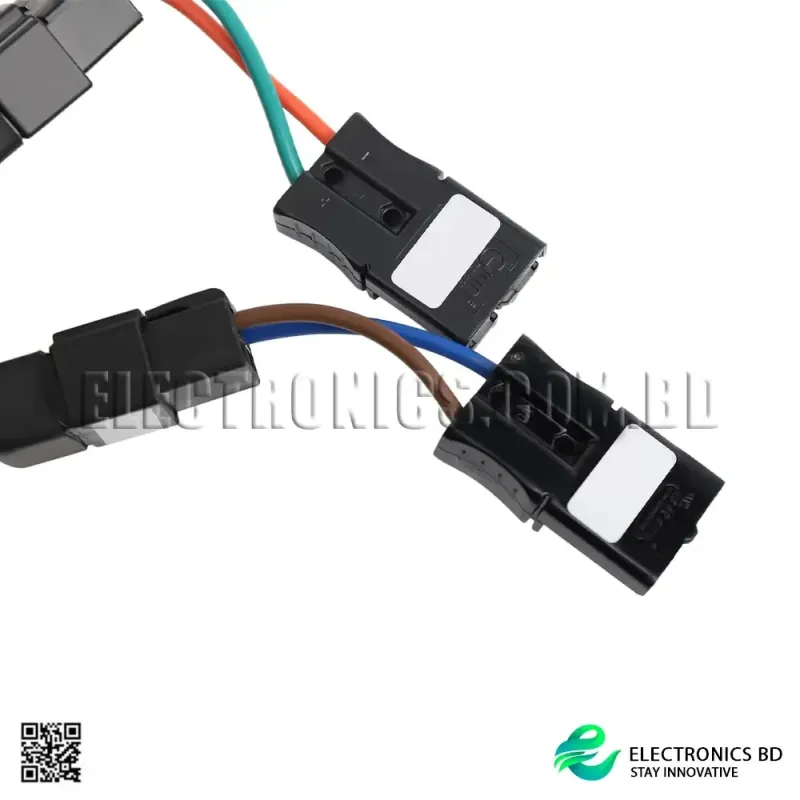

• Connection Mode: ML2P + Adapter Cable

• Brake Voltage: 24V

• Output Current: 50A

• Operating Voltage: DC 19–32V

• Charging Current: Max. 6A

• Peak Voltage: DC 35V

• Supply Voltage: DC 24V

• Standby Current (At Rest): ≤50mA

• Standby Current (Power Off): 0.1 + 0.05mA

• Waterproof Level: IPX3 (Electronic Equipment)

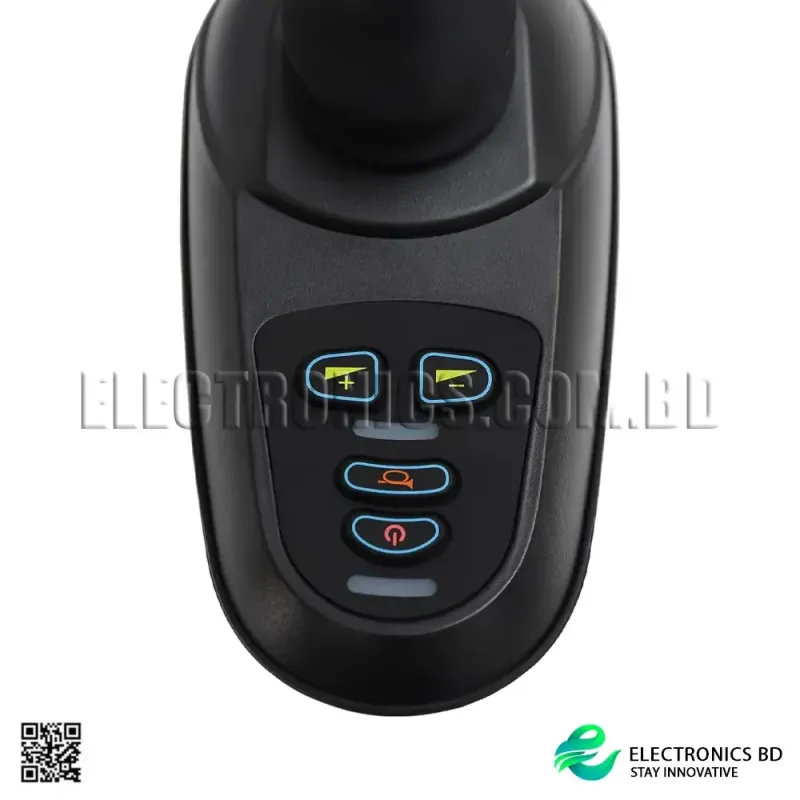

• Adjustable Speed: 5 Gears

• Operating Temperature: -25°C to 60°C (-13℉ to 140℉)

• Storage Temperature: -45°C to 80°C (-49℉ to 176℉)

• Applicable Motor: 24V DC Brush Motor

• Net Weight: 1.2kg / 2.65lbs

• Gross Weight: 1.3kg / 2.87lbs

• Mounting Hole Pitch: 40mm / 1.57in

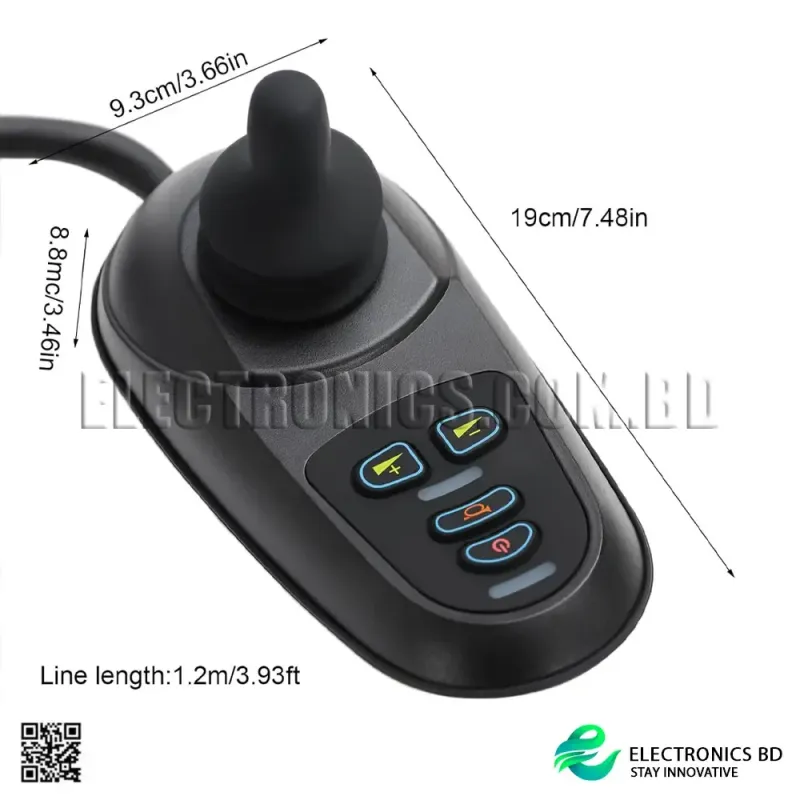

• Product Size: 19 × 9.3 × 8.8 cm

• Package Size: 23 × 13 × 16 cm

Package:

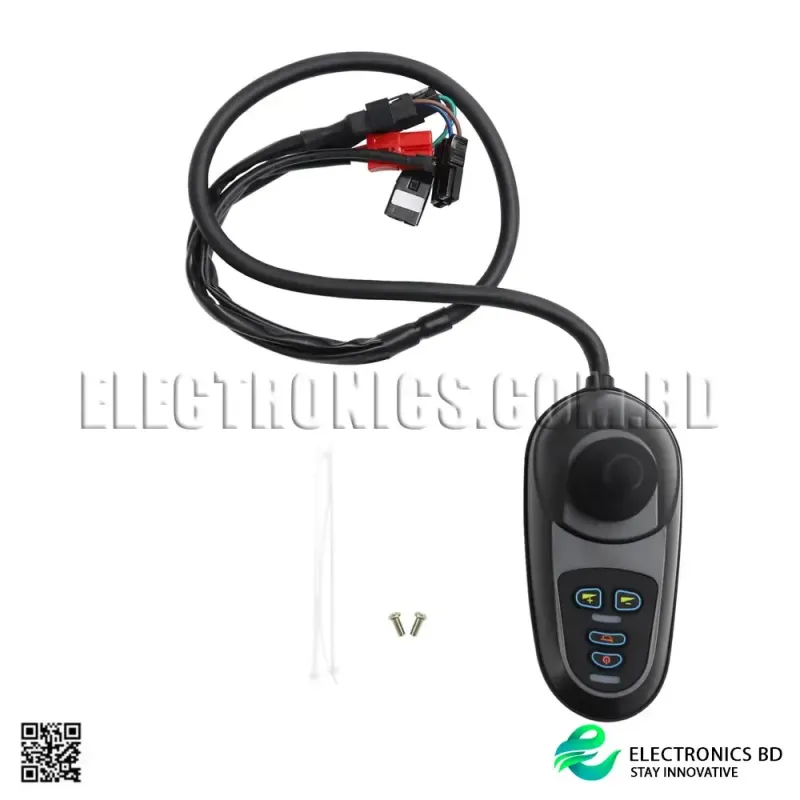

• 1 x WB5003 Electric Joystick Controller

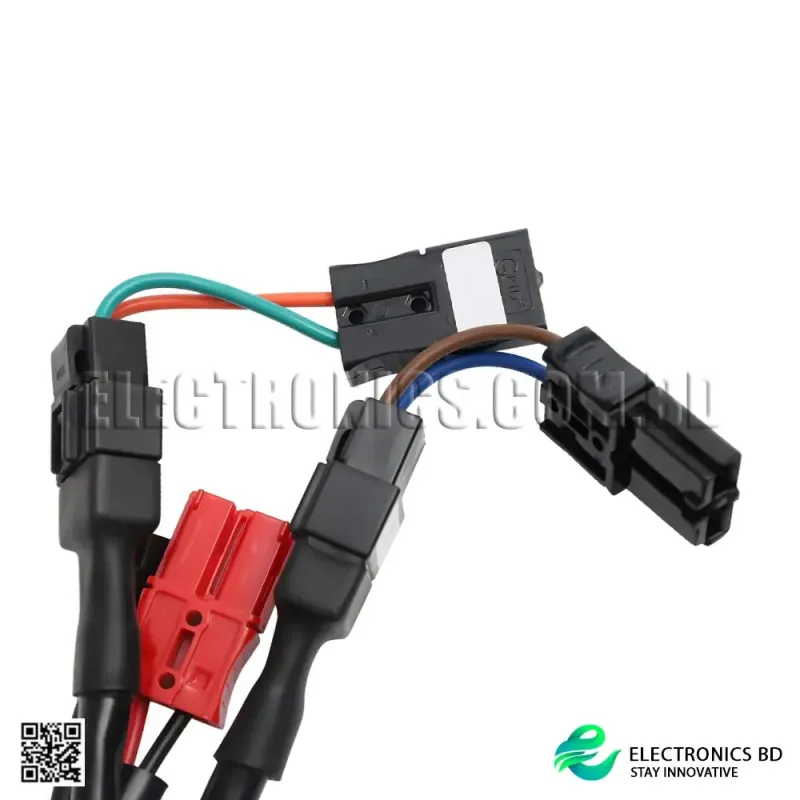

• 1 x Adapter Cable (ML2P)

• 1 x User Manual

Description:

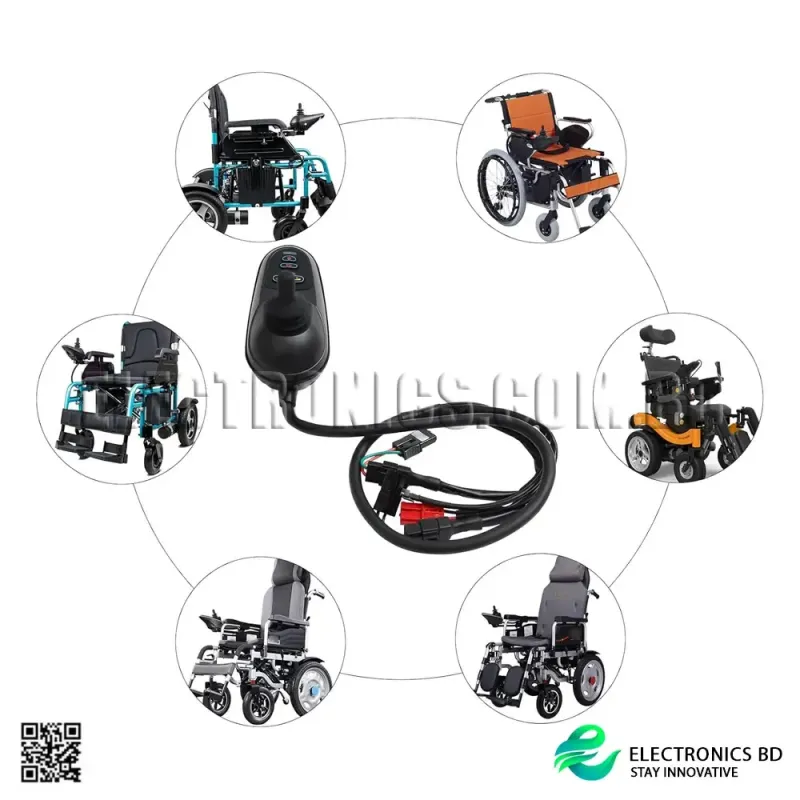

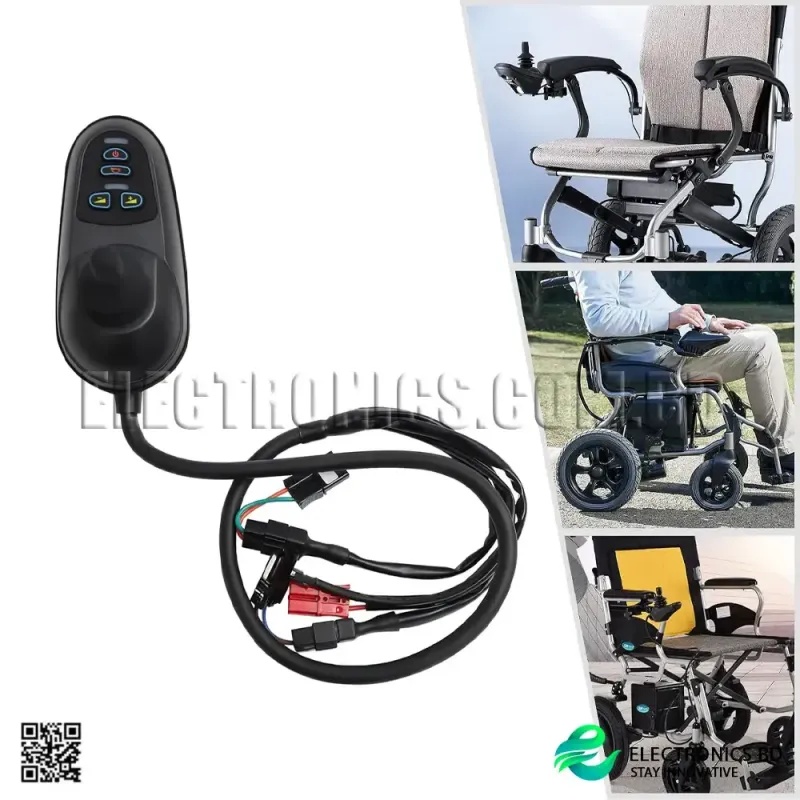

The WB5003 joystick controller is designed for 24V electric wheelchairs using DC brush motors. It provides a smooth, adjustable 5-gear speed control system, integrated braking function, and safety features. With IPX3 waterproofing, it can handle everyday usage and light exposure to moisture. The ergonomic design makes it user-friendly for elderly or mobility-impaired users, while the high-output current ensures reliable motor response.

FAQ:

Q1: What type of motor does this controller support?
A1: It supports 24V DC brush motors.

Q2: Can the speed be adjusted?
A2: Yes, it supports 5 adjustable speed levels (gears).

Q3: Is this controller waterproof?
A3: It is IPX3 rated, meaning it's protected against light water sprays and rain.

Q4: What is the maximum current output?
A4: The output current is up to 50A.

Q5: Does it have a braking function?
A5: Yes, it includes an integrated brake control system with 24V brake voltage.
