Arducam IMX219 8MP 1080P USB Camera Webcam B0196

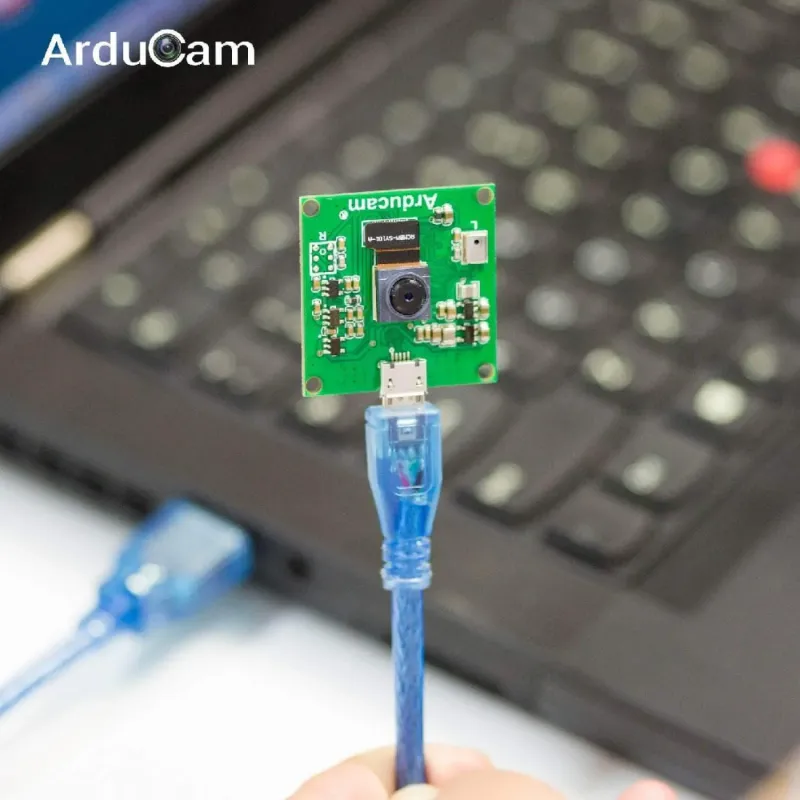

The Arducam IMX219 USB Camera (B0196) is an 8MP UVC-compliant webcam designed for high-quality image capture and video streaming.
It is suitable for developers, educators, and automation projects.
USB-powered operation and broad OS support make it practical for use across Bangladesh.
Main features
- 8MP 1/4” IMX219 image sensor
- Maximum resolution 3264 × 2448
- MJPG and YUY2 data formats
- 1080P video at up to 30fps
- Adjustable brightness, contrast, saturation, sharpness, gamma
- Integrated 650nm IR filter for visible light only

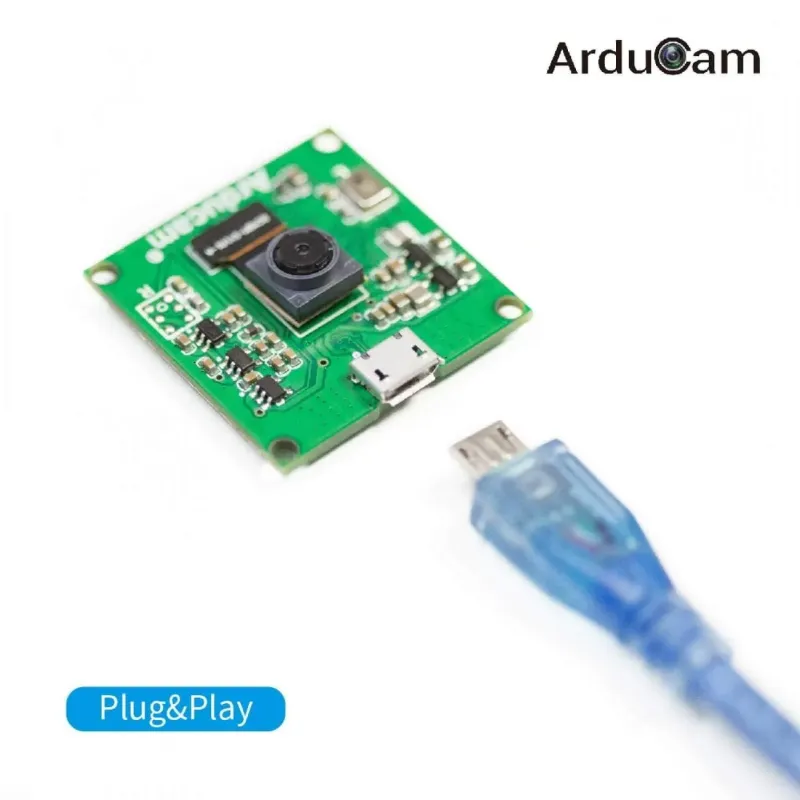

- USB 2.0 plug-and-play with UVC standard
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Arducam |
| Model | IMX219 USB Camera (B0196) |
| Sensor | 8MP 1/4” IMX219 |
| Resolution | 3264 × 2448 |
| Video Resolution | 1920 × 1080 @30fps |
| Data Format | MJPG / YUY2 |
| Field of View | H 62.2° / V 48.8° |
| IR Filter | 650nm IR Cut (Visible Light Only) |
| Power Supply | USB 5V |
| Working Current | Max 200mA |
| Operating Temperature | -20°C to +75°C |

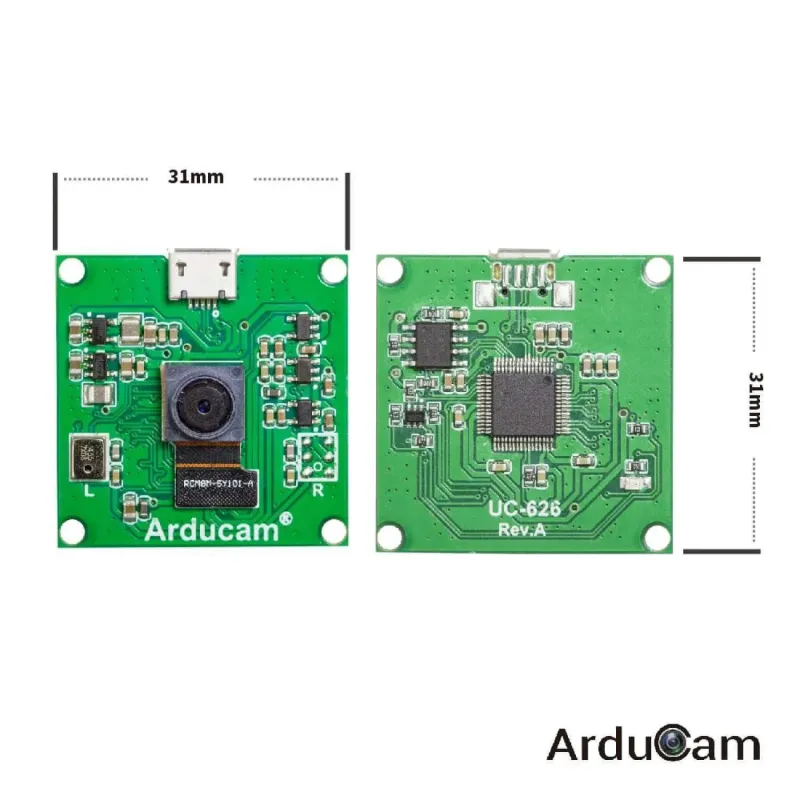

| Dimensions (Size) | 31 × 31 mm |
| Country of Origin | China |
| Warranty | 4 Days General Warranty |
⚠️ Please allow 3% measuring deviation.

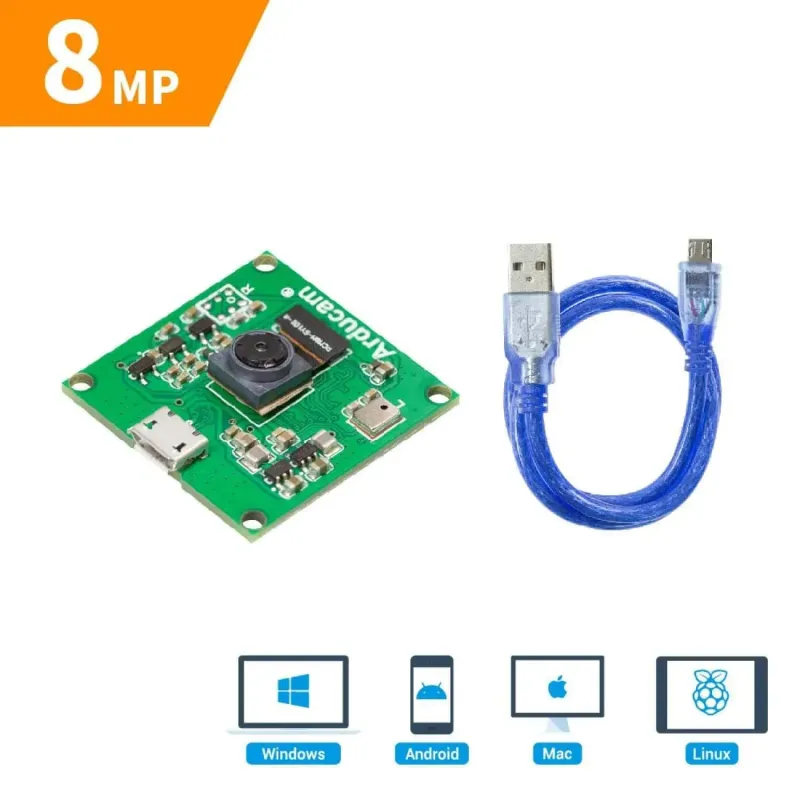

Package Content
- 1 × Arducam IMX219 USB2.0 Camera Module
- 1 × USB Cable (50 cm)
What are the reason this Arducam IMX219 USB2.0 Camera Module ?
The Arducam IMX219 USB camera offers high-resolution imaging with easy USB integration,
making it ideal for Bangladesh-based development and automation projects.
- High-quality 8MP image sensor
- Plug-and-play on multiple operating systems
- USB-powered, no external supply needed
- Compact size for embedded applications
- 4 Day General Warranty
- Fast Home Delivery all over Bangladesh
What is Arducam IMX219 USB2.0 Camera Module ?
It is a UVC-compliant USB webcam built around the IMX219 image sensor.
The camera captures high-resolution images and streams video directly to a computer or embedded system via USB.
How Arducam IMX219 USB2.0 Camera Module Works?
The camera captures images using the IMX219 sensor and transmits video data over USB 2.0.
UVC support allows the operating system to recognize it instantly without additional drivers.
Usage/Application
- Computer vision and image processing projects
- Robotics and automation systems
- Video streaming and recording

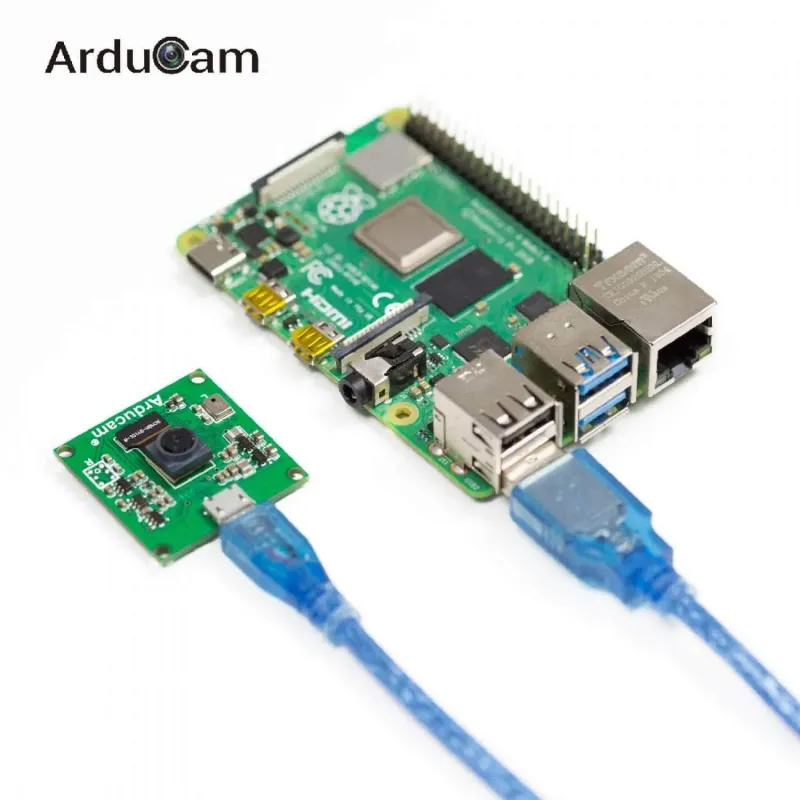

- Embedded Linux and SBC applications
- Suitable for Bangladesh due to USB power and wide OS support
Warranty & Return Policy
Note: This item cannot be returned, but if it arrives damaged or doesn’t work properly,
please contact us for assistance or resolution. Please make a video before opening the box.
Need Assistance ?
Please call to our office to get more information about products, delivery information, warranty or return policy.
Mobile: +8801641757175
Email: [email protected]
FAQs
What is the maximum resolution of this camera?
It supports up to 3264 × 2448 resolution.
Can it be used as a standard webcam?
Yes, it is UVC compliant and works as a plug-and-play webcam.
Does it support 1080P video?
Yes, it supports 1920 × 1080 at 30fps.
Is external power required?
No, it is powered directly from USB 5V.
Does it work on Linux and Windows?
Yes, it supports Windows, Linux, Mac, and Android.
