Specifications:

• Color: As shown in the product pictures
• Power Supply: 3-5V (with internal low dropout regulator)
• Communication Protocol: Standard IIC/SPI
• Gyroscope Range: ± 250, ± 500, ± 1000, ± 2000 °/s
• Acceleration Range: ± 2g, ± 4g, ± 8g, ± 16g
• Magnetic Field Range: ± 1.3, ± 8.1 gauss
• Pitch: 2.54mm

Package:

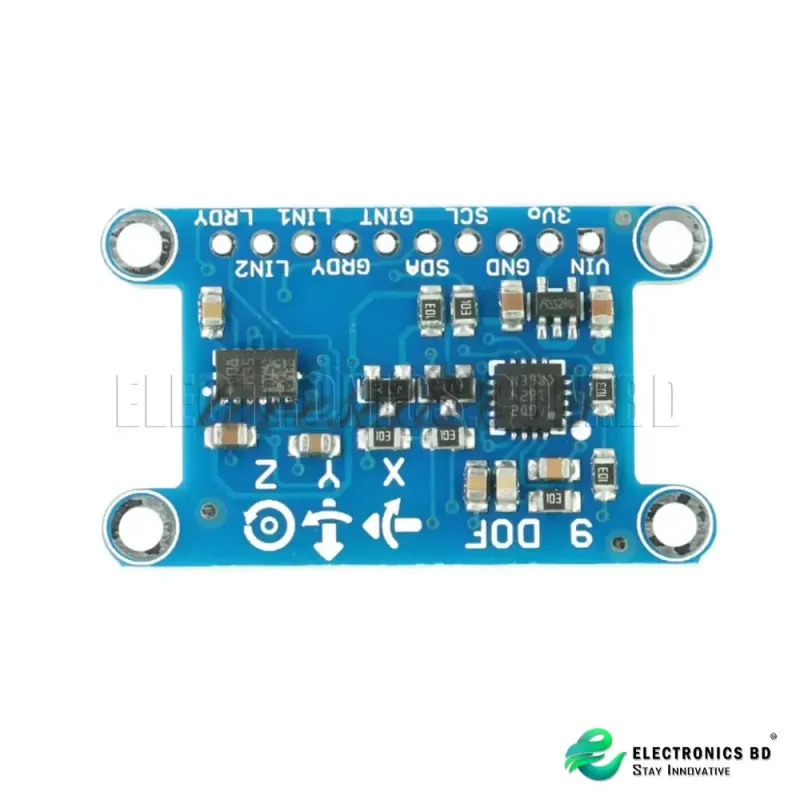

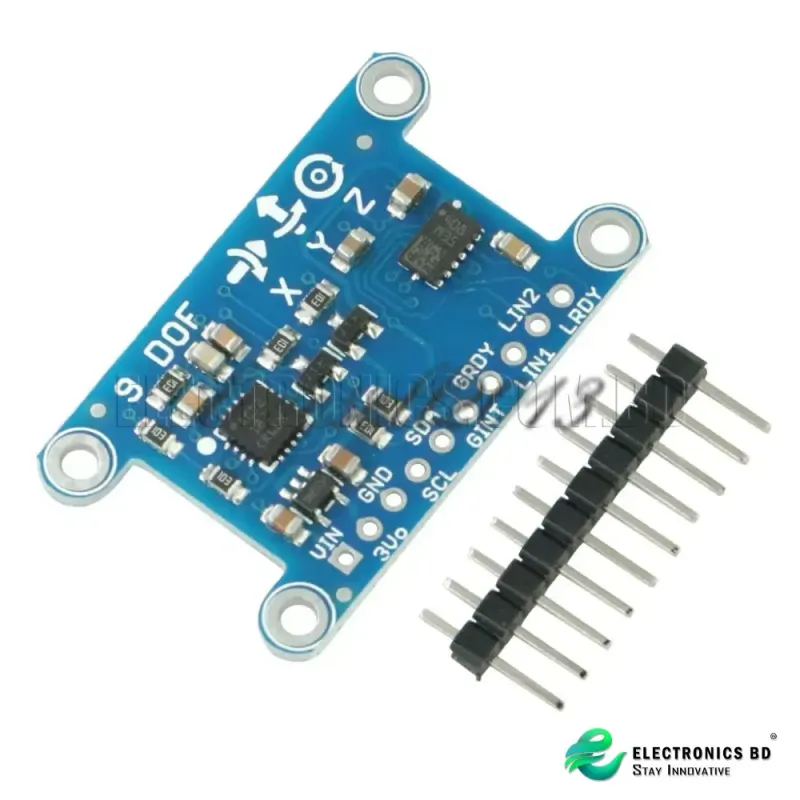

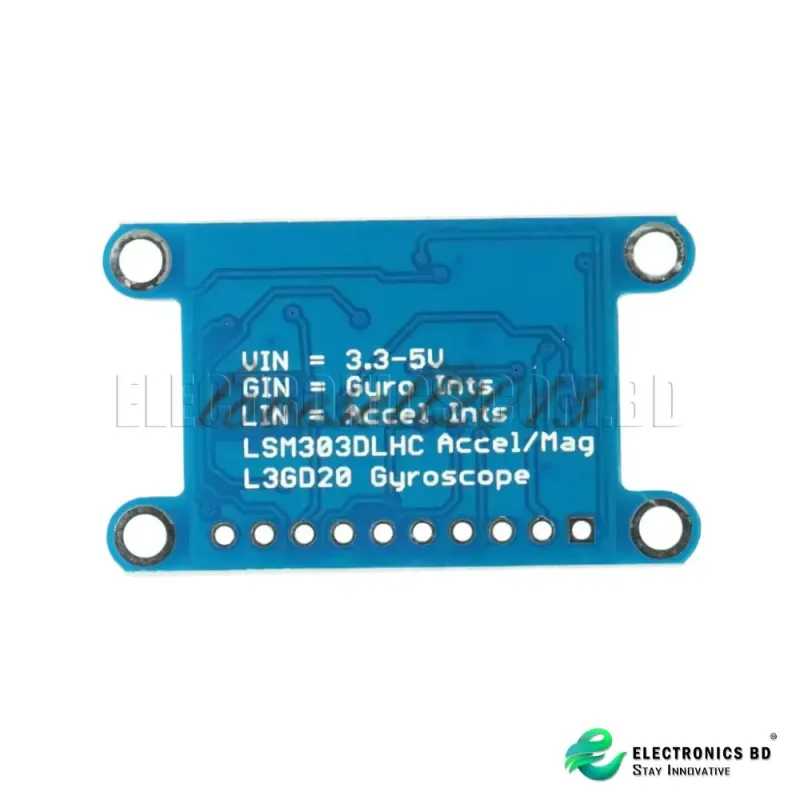

1x 9 Axis IMU L3GD20 LSM303D Module 9DOF Compass Acceleration Gyroscope Sensor Module

Features:

• 9 Degrees of Freedom (DOF): Combines a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer to capture nine different types of motion and orientation data.
• Power Efficiency: Operates on a 3-5V supply with a low dropout regulator for efficiency.
• Standard Communication Protocols: Supports both IIC and SPI protocols for seamless integration with Arduino and other microcontrollers.
• Wide Range Sensitivity: Features adjustable ranges for gyroscope, acceleration, and magnetic fields, allowing for precise readings tailored to different applications.
• Compact Design: Small, lightweight, and easy to integrate into various projects that require motion sensing and orientation data.

Description:

The 9 Axis IMU L3GD20 LSM303D Module is a highly advanced sensor module designed for capturing motion and orientation data. This module provides 9 degrees of freedom (9DOF), combining a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer in one compact unit. It is perfect for applications where motion, tilt, or orientation sensing is required, such as robotics, drones, or wearable devices.

The module communicates using standard IIC or SPI protocols, making it easy to interface with microcontrollers like Arduino. It operates efficiently on a 3-5V power supply, with an internal low dropout regulator ensuring stable performance. The sensor offers a wide range of gyroscope, accelerometer, and magnetic field readings, allowing it to be used in a variety of projects requiring motion sensing or navigation data.

FAQ:

1. What kind of data can this module capture?
   This module captures 9 degrees of motion data, including gyroscope (angular velocity), accelerometer (linear acceleration), and magnetometer (magnetic orientation).

2. What is the power supply requirement?
   The module operates on a 3-5V power supply and includes an internal low dropout regulator for stable performance.

3. Can it be used with Arduino?
   Yes, this module is compatible with Arduino and other microcontrollers through standard IIC and SPI communication protocols.

4. What is the range of the gyroscope and accelerometer?
   The gyroscope range is ±250, ±500, ±1000, and ±2000 °/s, while the accelerometer range is ±2g, ±4g, ±8g, and ±16g.

5. How is this module typically used?
   It is commonly used in applications such as drones, robotics, navigation systems, and wearable devices that require precise motion and orientation tracking.
